A Versatile and Modular Solution
Sandwich Panels 40 mm and 60 mm sandwich panels with A2S0 zintroalum sheets inside and outside, insulated with FF96
mineral wool
Aluminum Profiles Extruded aluminum profiles 6063-15 with thermal break.
Module Union Element Modular union element with three-axis alignment, suitable for outdoor installations.
Adjustable Metal Hinge Three-axis adjustable metal hinge, suitable for outdoor environments.
External Handle with Progressive Locking External handle with progressive locking.
Corner Pieces and Connections Corner pieces and connections in polyamide, reinforced with fiberglass.
Energy Recovery Energy recovery systems using either cross-flow or rotor technology.
Heat Exchangers Copper tube and aluminum fin heat exchangers available for both cooling and heating. Electric resistance
available in some sizes.
Aluminum Dampers Aluminum dampers with gear drive and manual or actuator operator.
Filtration Options A wide range of filtration options, with efficiencies available from MERV 8 to HEPA H14.

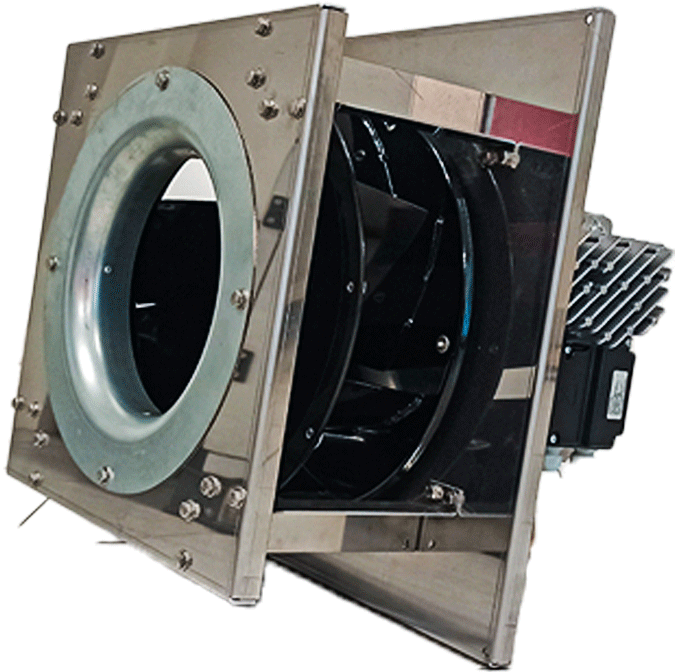

Centrifugal Fan Direct-drive centrifugal fan with Airtoll turbine for premium efficiency. In 230-volt equipment, the fan
is coupled to an alternating current motor. In 400-volt equipment, the fan is coupled to an electronically commutated
motor with an integrated speed controller from the Infinitum brand.

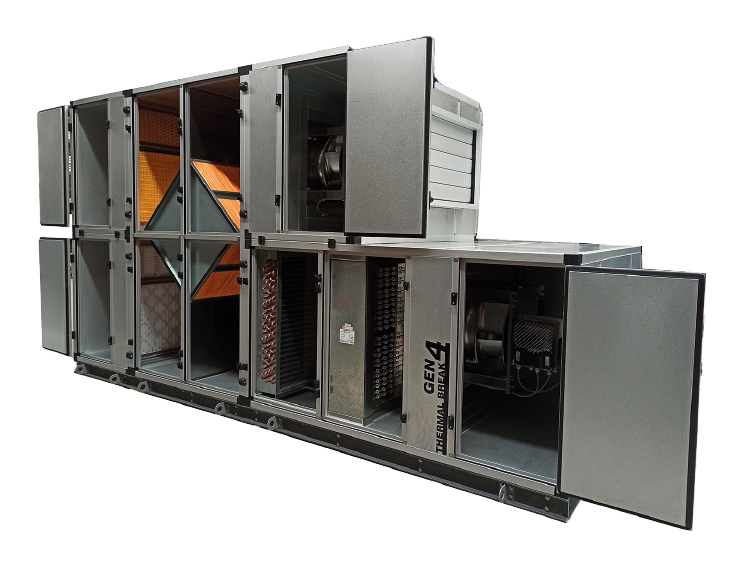

AHU KLIMA
Our engine is manufactured with American Engineering in America USA.
Our engine is manufactured with American Engineering in America USA.
A Specialized Air Handling Unit (AHU) is equipment used in HVAC systems designed to perform specific functions in
industrial, commercial, or institutional environments. These units are tailored to meet particular requirements such as
precise control of temperature, humidity, filtration, or air circulation in specific settings like hospitals,
laboratories, factories, clean rooms, and more.
Designed to Meet Standards
Compliant with EN 1886 and EN 13053
Compliant with EN 1886 and EN 13053
Suitable for Outdoor Use
Airflow Capacity of Up to 50,000 CFM
Easy Transportation
20 Module Sizes Available
Simple Assembly
Thermal Break Cabinet
Easy Maintenance
